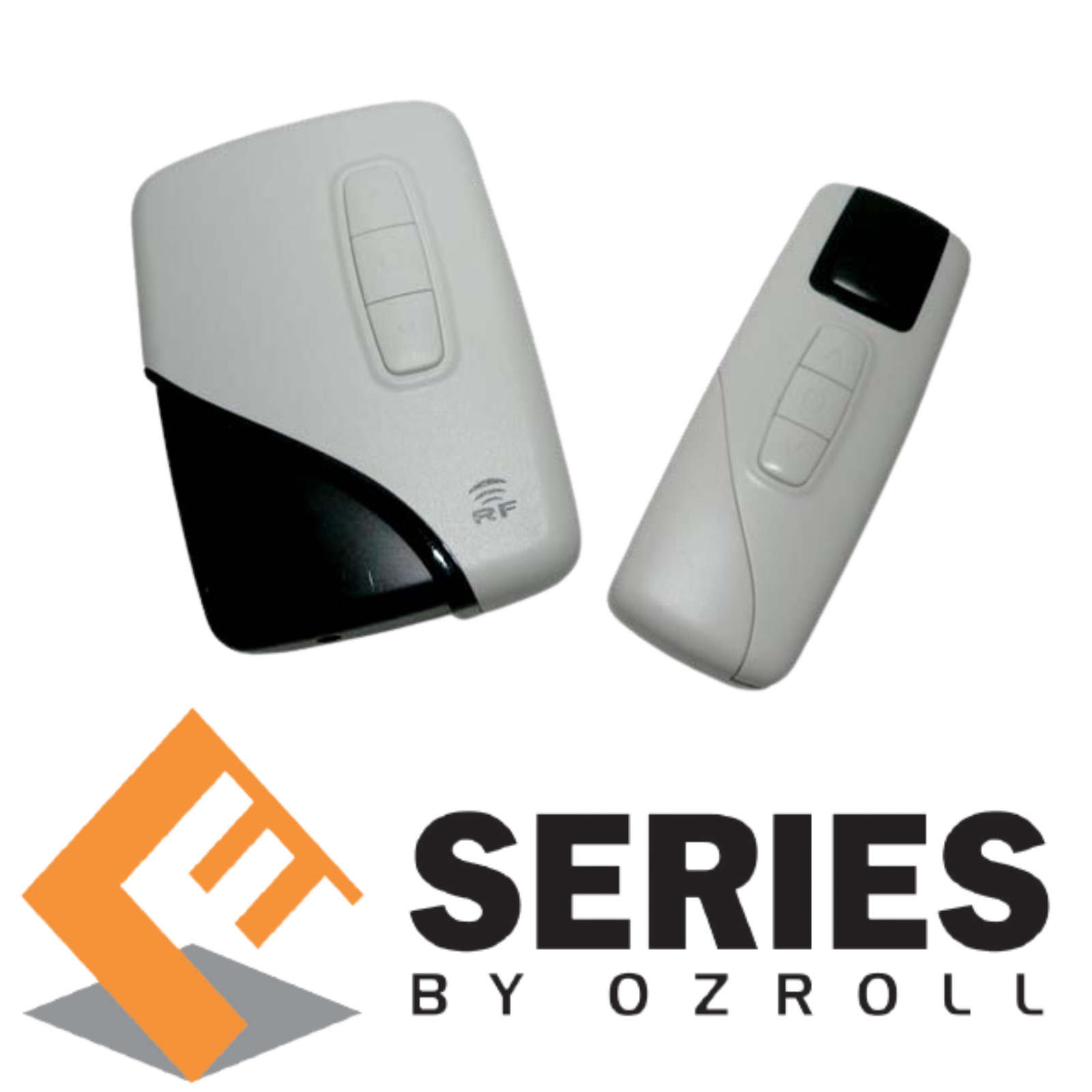

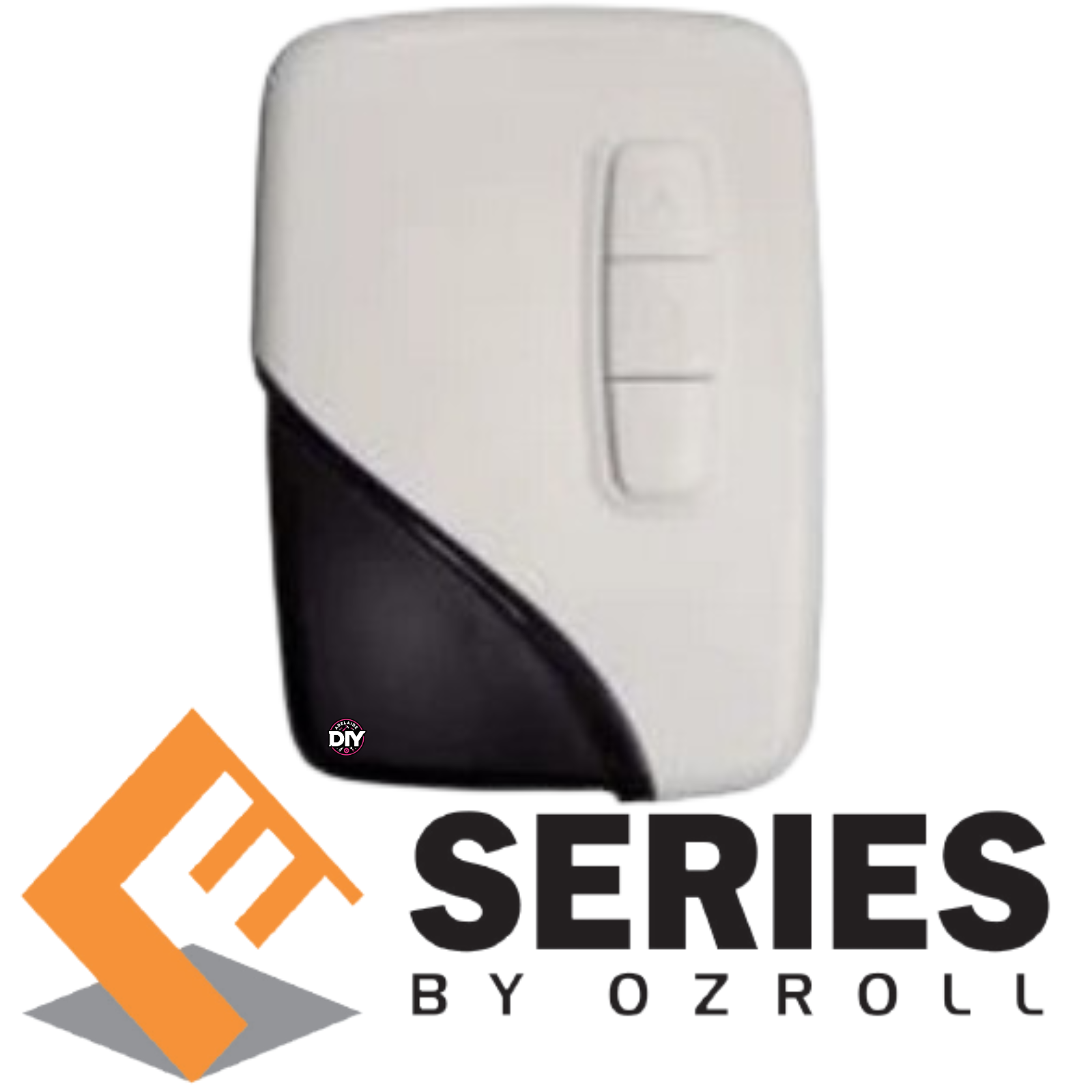

The E-Port control is the core of the rechargeable drive system. The two LEDs help indicate its status.

When connected to a motor, pressing the up or down button will light the top
LED for a few seconds, showing the motor is operating. If the
controller is not connected to a wall plate, the top LED will flash.

When a charger is plugged into the bottom of the controller, the charge LED
will illuminate (even briefly) to confirm power is available.

All DIY Roller Shutters under 1000mm wide will be installed with the L10 system.

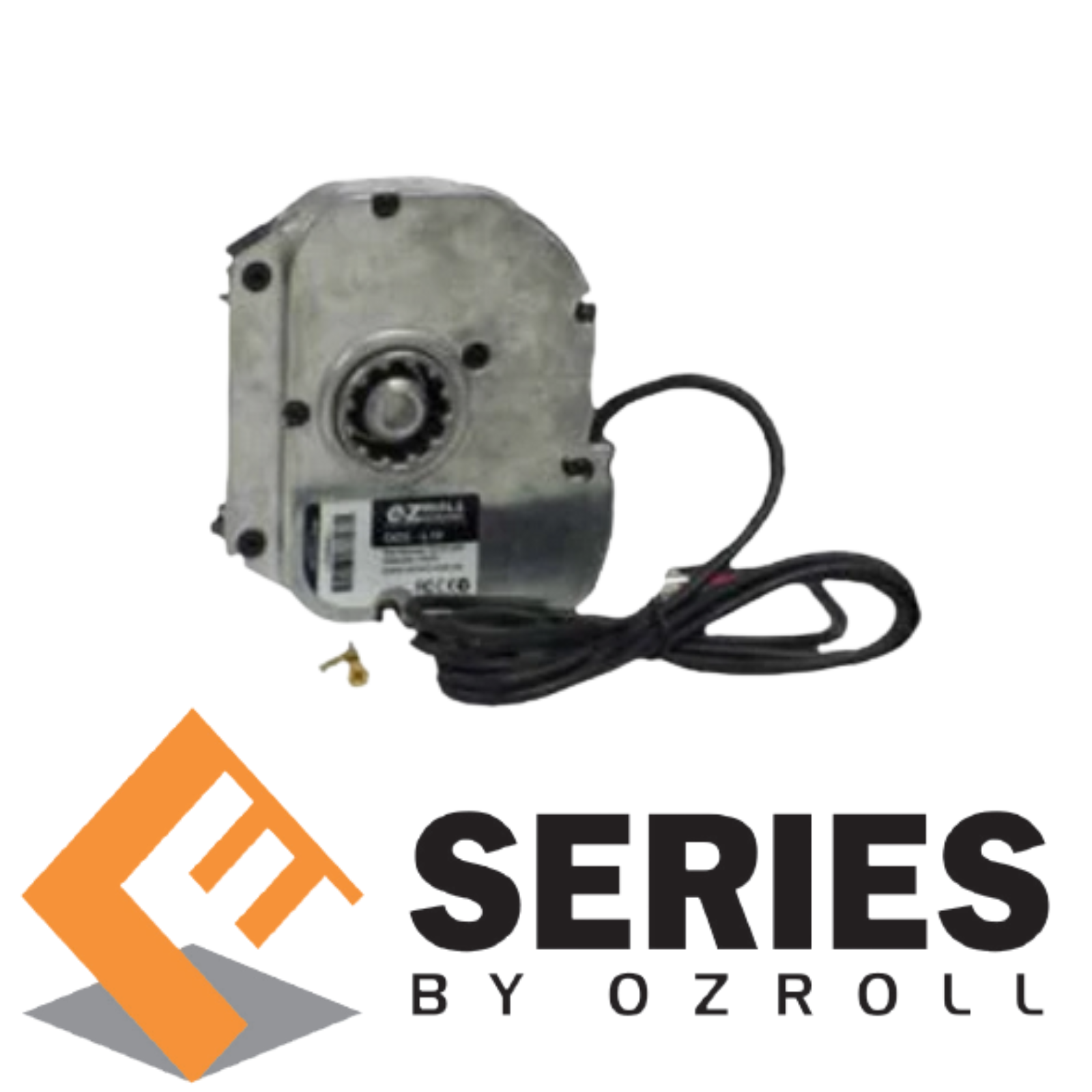

The ODS L10 motor is a 12V lateral motor designed to work seamlessly with Ozroll’s low-voltage DC controllers.

It’s
suited for installations where space is limited, fitting into end
plates from 165mm and above. This makes it ideal for smaller openings
like bathroom or bay windows, where a standard tubular motor won’t fit.

The
motor features an internal gear system that acts as a preset down stop,
configured in the factory during assembly. On the upward cycle, the
motor stops automatically when resistance is detected using guide stops
within the shutter.

All Roller Shutters over 1000mm will be installed with a T-20 motor, All Roller Shutters over 2350mm will use a T-35 Motor.

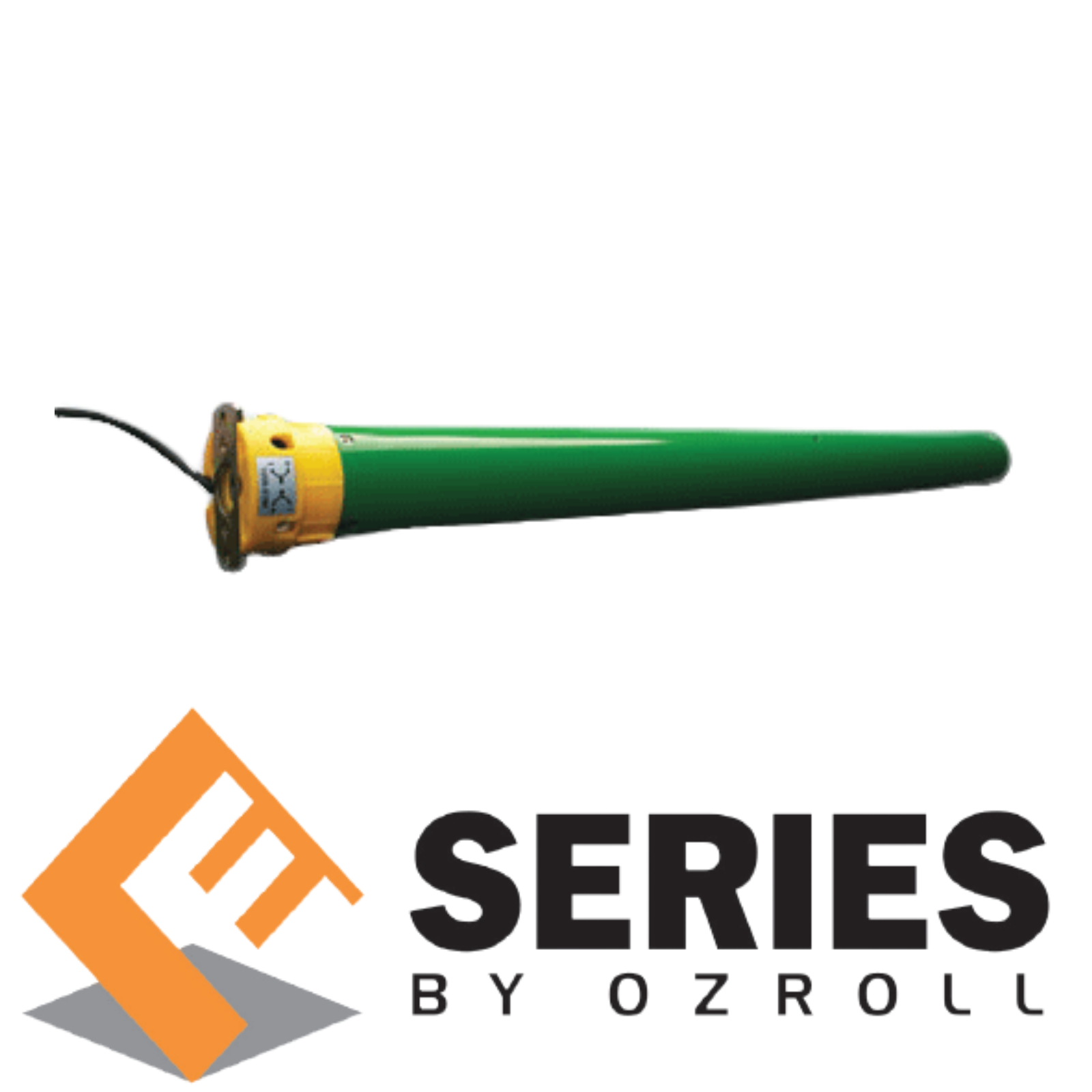

The T-Series 12V tubular motor is purpose-built to operate with Ozroll’s low-voltage DC controllers.

Known for its smooth, quiet and reliable performance, each motor comes with a
simple adjustment tool that allows you to set the upper and lower limits using progressive twist settings.
